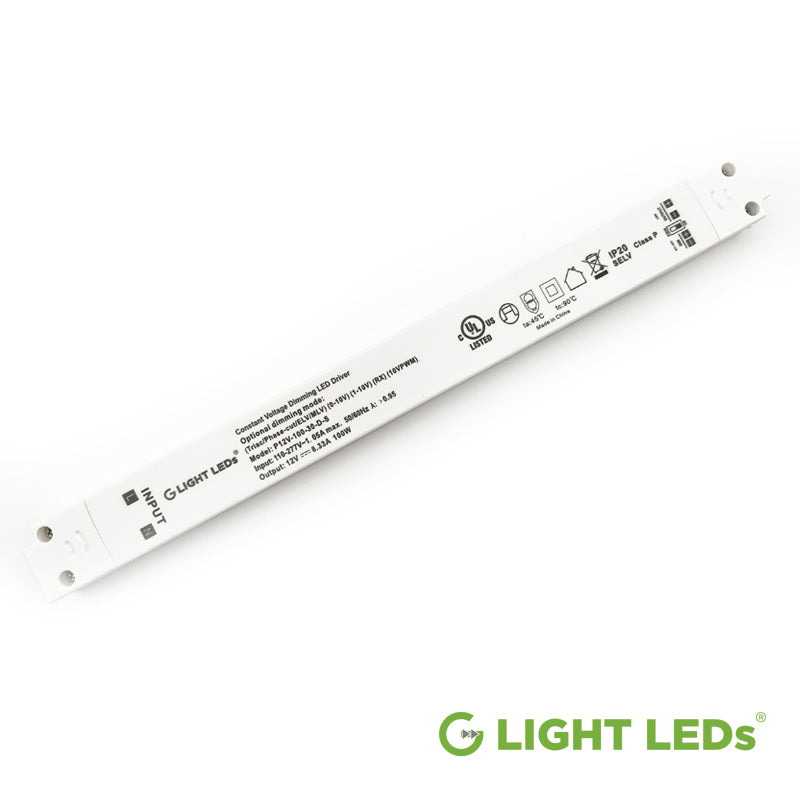

12V and 24V G - Slim Universal 5-in-1 LED Electronic Dimmable Driver Indoor Rated UL-Listed

Specifications:

• Warranty: 6 Years
• Frequency: 47-63Hz
• Output Voltage: DC 12/24V
• Input Voltage: AC 100-277V
• IP Rating: IP20 Indoor Rated

• Power Output: 60W, 100W, 150W
• Working Temperature: -40ºC to 60ºC
• Safety Certificates: UL Listed, FCC, SELV, Class 2, Class P
• Protection: High Temperature, Over Load, Short Circuit
• Dimming Interface: MLV, ELV, 0-10V, 1-10V, PWM, Resistance Dim
• Current Output:
  ‣12V 60W: 5A
  ‣12V 100W: 8.33A
  ‣12V 150W: 12.5A
  ‣24V 60W: 2.5A
  ‣24V 100W: 4.17A
  ‣24V 150W: 6.25A



Key Features:

• Versatile Dimming Options: Accommodates ELV, MLV, TRIAC, 0-10V, 1-10V, 10V PWM, and Potentiometer options for various dimming applications.
• Sleek and slim design: Featuring a compact form factor for seamless integration into any lighting setup.

• Wide input voltage range: Supports AC 100-277V input voltage, ensuring compatibility with a range of electrical systems.
• Robust protection: Equipped with maximum protection against high temperature, overload, and short circuit, ensuring safety and longevity.

Applications:

• Residential lighting: Enhance the ambiance of indoor spaces such as living rooms and bedrooms with dimmable LED lighting controlled by the G-Slim Universal LED Electronic Dimmable Driver.
• Retail displays: Create captivating retail displays with adjustable lighting levels powered by this dimmable driver, attracting customers and highlighting products effectively.
• Hospitality venues: Illuminate hotels, restaurants, and entertainment venues with dimmable LED lighting solutions, offering guests a customizable and inviting atmosphere.
• Art galleries: Showcase artwork in galleries and museums with precise and controllable lighting, highlighting the details and enhancing the viewing experience with the G-Slim LED Electronic Dimmable Driver.

For inquiries or to place an order, please contact us today.
