12V and 24V G-Drive Mini Universal LED Electronic Dimmable Driver Indoor Rated UL-Listed

Specifications:

• Warranty: 6 Years
• Frequency: 50/60Hz
• Power Output: 60W, 96W
• IP Rating: IP30 Indoor Rated
• Electronic Dimming Interface: MLV, ELV
• Output Voltage: DC 12/24V
• Input Voltage: AC 100-120 ACV
• Protection: Over Load, Short Circuit
• Working Temperature: -40ºC to 60ºC
• Safety Certificates: UL Listed, Class 2, RoHS, SELV
• Current Output:
  ‣12V 60W: 5A
  ‣24V 60W: 2.5A
  ‣24V 96W: 4A



Key Features:

• Compact design: The smallest electronic dimmable driver in its wattage range, ideal for integration into limited spaces.
• Tailored for 12 and 24V LED strip lights: Specifically recommended for G Bright and G Light COB strip lights, ensuring optimal performance and compatibility.
• Smooth dimming performance: Offers flicker-free dimming from 100% to 0, providing customizable lighting solutions.
• Wide dimmer compatibility: Compatible with Triac, MLV, and ELV dimmers, offering versatility in dimming options.
• Enhanced safety features: Equipped with built-in short circuit and overload protection for reliable operation and safety assurance.

Applications:

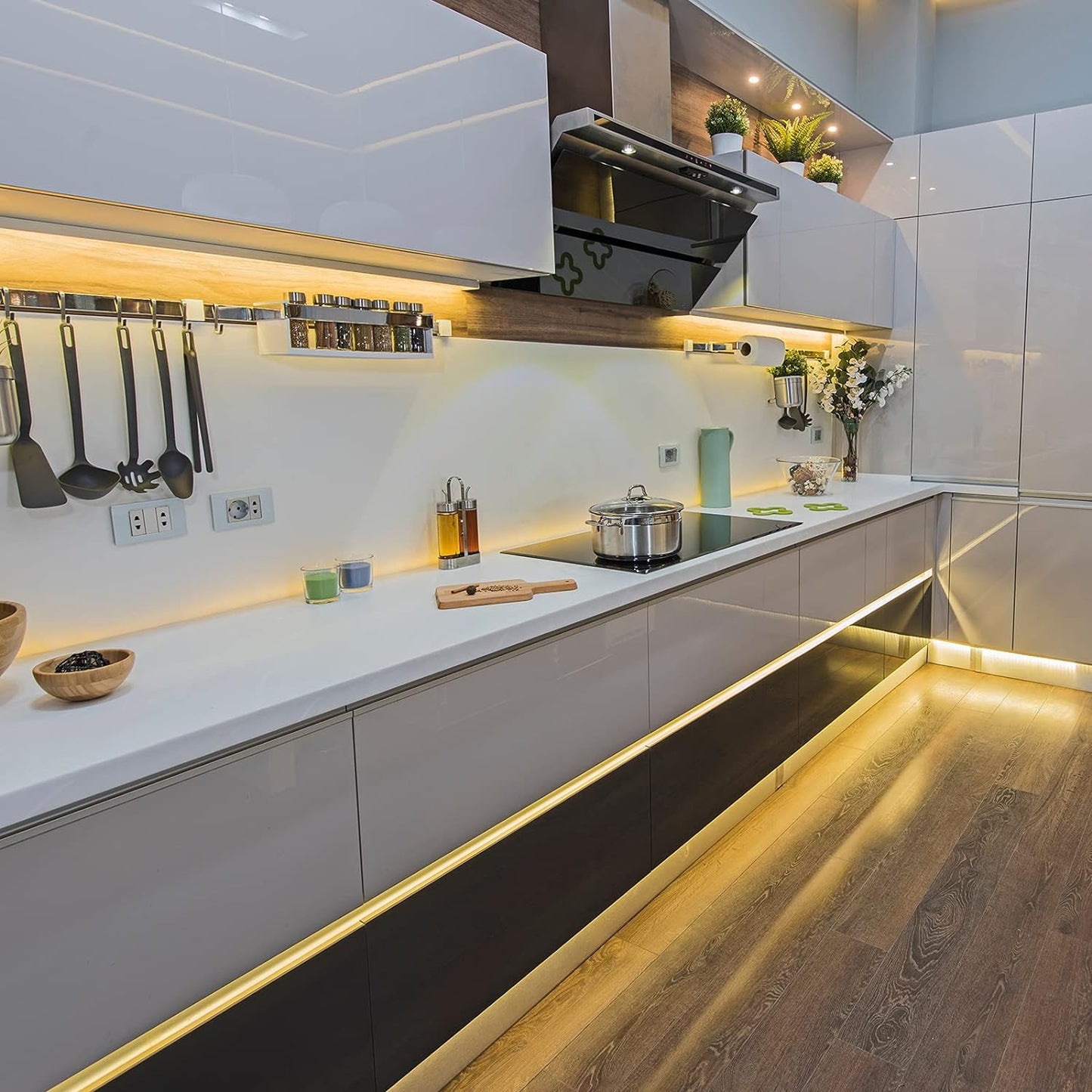

• Residential lighting: Ideal for residential applications such as kitchens, living rooms, and bedrooms, offering customizable lighting solutions with the advantage of its small and compact size.
• Retail displays: Create captivating retail displays with adjustable lighting levels powered by this dimmable driver, attracting customers and highlighting products effectively.
• Hospitality venues: Illuminate hotels, restaurants, and entertainment venues with dimmable LED lighting solutions, offering guests a customizable and inviting atmosphere.
• Art galleries: Perfect for lighting art galleries and museums, providing adjustable lighting levels to showcase artwork with optimal visibility and aesthetics in small and compact galleries without cluttering the space.

For inquiries or to place an order, please contact us today.
